Description
12GA Shotguns

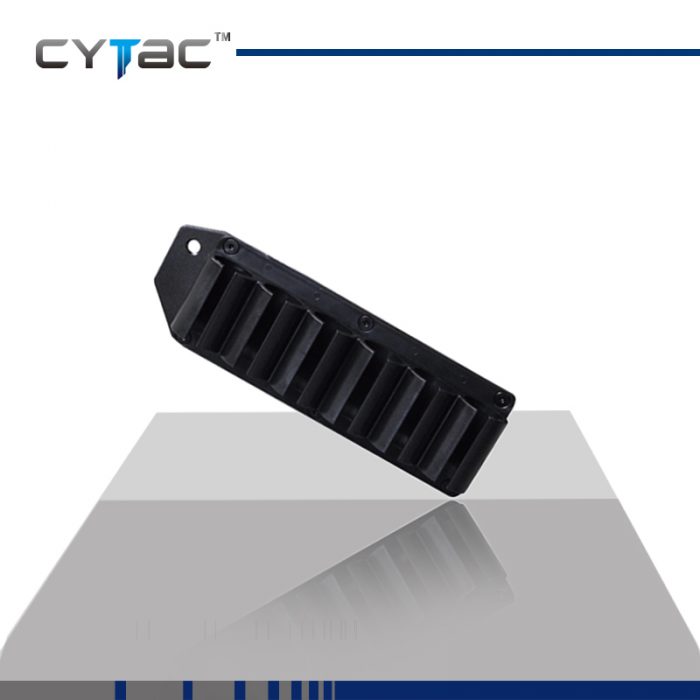

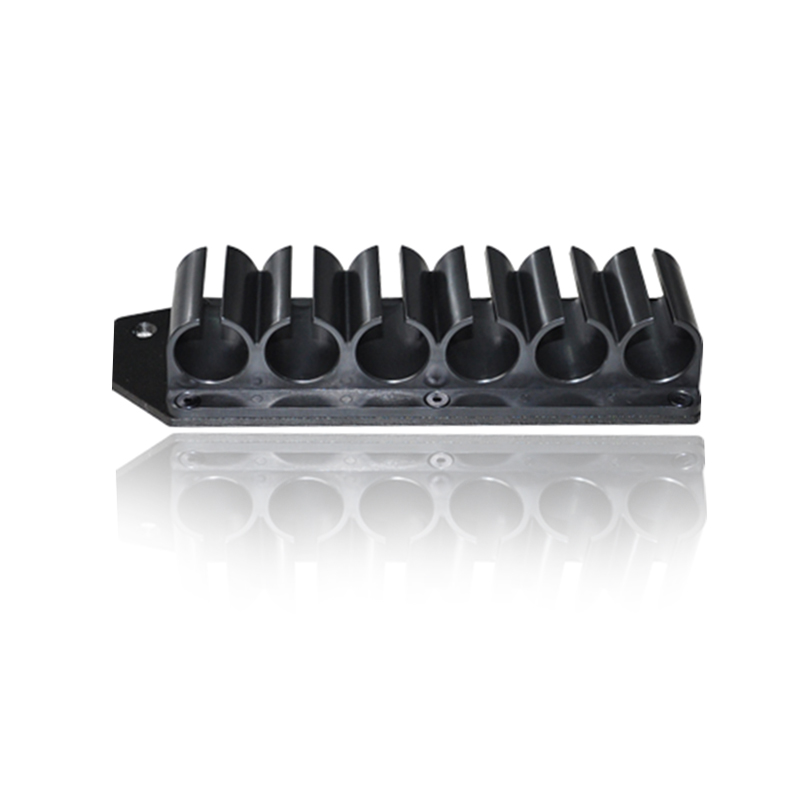

Shotshell Carrier holds 6-round 12GA shots. It is mounted to Remington shot gun for easy access and fast reload.
PRODUCT INFORMATION
Material: Military Grade Polymer
Available Range: Training, Competition, or Hunting Use
FITNESS
Fits: Remington 870, 1100 & 11-87, Etc.
FEATURES
· Lightweight, polymer shotshell carrier.
· Easy installation, requires no alterations to the shotgun in most cases.
· All mounting screws are included, no gunsmithing required
SPECIFICATIONS
Color: Black
KIT
· two Allen Key of different size.
· a 10/32 screw with washer.
· a 1/4-28 screw with washer
INSTALLATION GUIDE:
1. : Remove 6 little hex screws from the shotshell carrier to expose two tapped hole in the mounting plate.
2: Lay the shotgun on its side with the ejection port facing down.
3. : Using the supplied big screw with washer, push out pin (A) located above and to the rear of the trigger guard. Leave screw in hole.
4: Turn the shotgun over and place the mounting plate on the receiver with the two corresponding holes on the two screws.
5: Start screws into the mounting plate and lightly tighten. Do not overtighten. Overtightening may lock up the shotgun’s action. To remedy, simply loosen screws.
